BulletPlusAX-5G-RC

5G RedCap Cellular Ethernet/Serial Gateway Concurrent Dual WIFI 6

Low Cost 5G Solution!

The BulletPlusAX-5G-RC is a high-performance, industrial-grade, multi-network router designed for both fixed and mobile applications. This rugged 5G RedCap router/gateway delivers download speeds of up to 223 Mbps1 and upload speeds of up to 123 Mbps1, making it ideal for medium speed, large capacity data needs!

The BulletPlusAX-5G-RC features 6x Gigabit Ethernet Ports (4LAN/2WAN), Dual SIM + eSIM w/Load Balancing & Failover, Dual Band 802.11ax WIFI, Dual Serial Ports, 2x Programmable I/O and Integrated GPS.

Features

  • New Product Fast 5G RedCap - Future Proof
  • 5G SA Sub-6: DL 223 Mbps | UL 123 Mbps 1
  • LTE(CAT4) Fallback: DL 195 Mbps | UL 105 Mbps
  • Dual Nano SIM + eSIM
  • Global Cellular Compatibility
  • 6 - Gigabit Ethernet Ports (4LAN/2WAN)
  • Concurrent Dual Band WiFi 6 (802.11AX)
  • Dual Serial Ports (1-RS232/485, 1-RS232)
  • Programmable I/O
  • Enhanced Port Forwarding, DMZ
  • Wide Operating Temp (-40°C to +85°C)
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts (SMS/Email)
  • IPSec w/IKEv1 & IKEv2 support
  • L2TP, Open VPN, Site-to-Site Tunneling
  • GRE Tunnel Support
  • MQTT Support
  • LWM2M
  • Firewall with ACL Security
  • Configurable via SSH, HTTPS Web Interface
  • Integrated GPS
  • Microhard IoT (NMS) Portal Support
  • Local/Remote firmware upgradable

Applications

  • IP/Ethernet Wireless Extension
  • Legacy Networks/Device Migration
  • Remote Access, VPN
  • Cellular Backbone
  • Point of Sale Systems
  • Mobile Internet Access

Approvals

  • FCC, ISED Canada (IC)

1Chipset rated speeds.

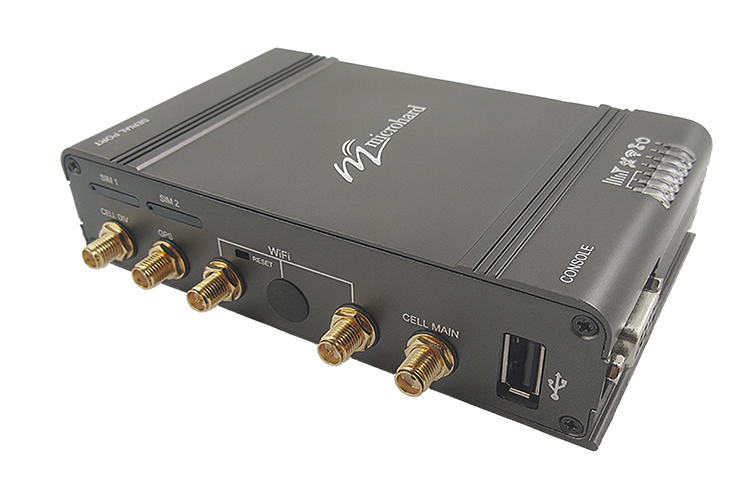

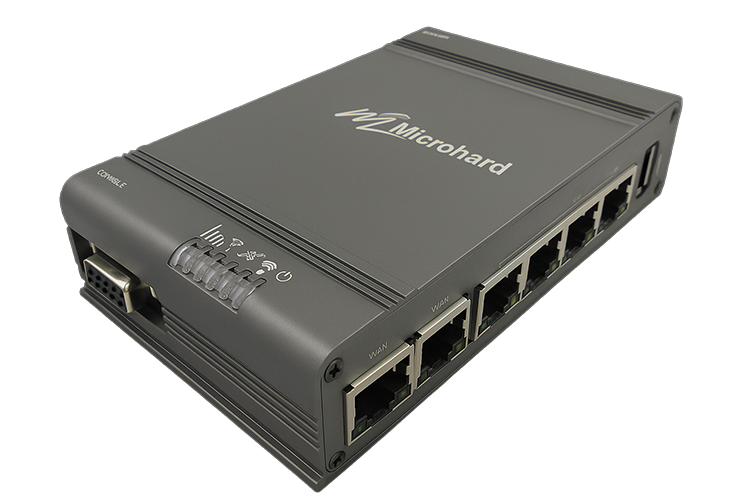

BulletPlusAX-5G-RC Images
