LTESWITCH-CAT12

LTESWITCH-CAT12 - Wireline CAT12 LTE 6 Port Gigabit Switch

The LTESWITCH-CAT12 is a industrial strength cellular solution using LTE Advanced Carrier Aggregation technology for critical data applications. The LTE-SWITCH-CAT12 delivers comprehensive switching and routing capabilities and provides fast CAT12 3xCA LTE connections with download speeds of up to 600 Mbps, and 150 Mbps uploads.

The LTESWITCH-CAT12 features 4x Gigabit LAN Ports, 2x Independent Gigabit WAN Ports & Dual SIM w/Failover, Dual Serial/Console Serial Ports and 2x Programmable I/O for the ultimate solution when redundancy matters the most.

Features

  • Ultra Fast CAT12 LTE Operation
  • Up to 600 Mbps Downlink
    150 Mbps Uplink
  • Dual SIM w/Failover
  • 6x 10/100/1000 Ethernet Ports
  • 2x RS232/485 Serial Data/Console Ports
  • Programmable I/O
  • MultiWAN w/LoadBalancing & Failover
  • IPv6 & IPv4 Support
  • Enhanced Port Forwarding, DMZ
  • Wide Operating Temp (-40°C to +85°C)
  • IP-Passthrough
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts
  • IPSec w/IKEv1 & IKEv2 support
  • Multiple Tunnel Support (16)
  • L2TP, Site to Site Tunneling
  • GRE Tunnel Support
  • Firewall with ACL Security
  • Microhard NMS Integration
  • Local/Remote firmware upgradable

Applications

  • IP/Ethernet Wireless Extension
  • Remote Access, VPN
  • Wireline LTE Backup
  • Cellular Backbone
  • Point of Sale Systems
  • Mobile Internet Access
  • Electric, Oil & Gas Utilities/Metering

Approvals

  • FCC, IC
  • PTCRB
  • UL HazLoc (C1D2)
  • Carrier Specific Approvals:
    Verizon, Bell

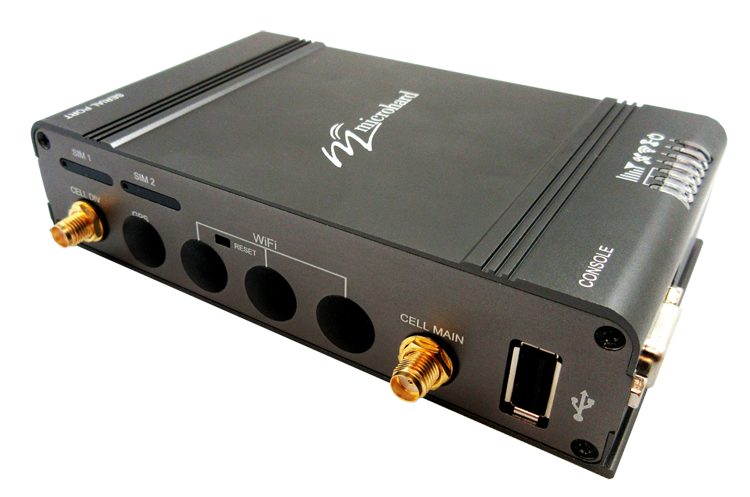

LTESWITCH-CAT12 Images

LTESWITCH-CAT12
LTESWITCH-CAT12
LTESWITCH-CAT12
LTESWITCH-CAT12
LTESWITCH-CAT12
LTESWITCH-CAT12



Order Information

Model Part Number
LTESWITCH-CAT12 MHK117790
LTESWITCH-CAT12 KIT MHK117792
