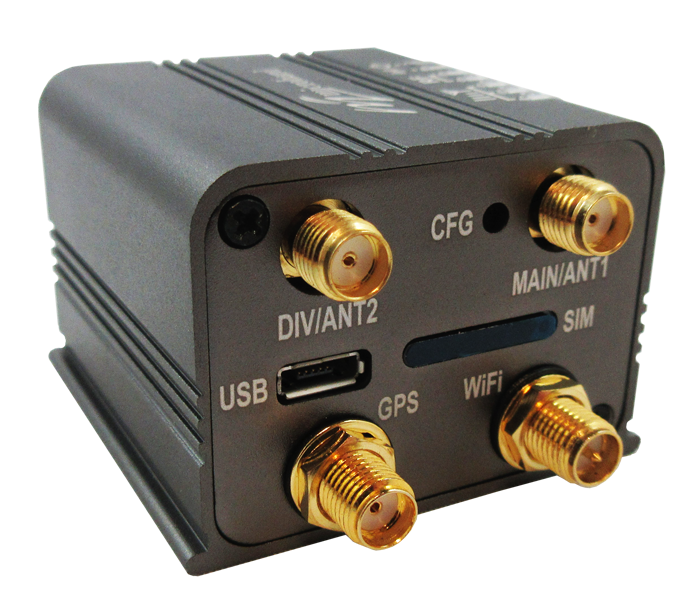

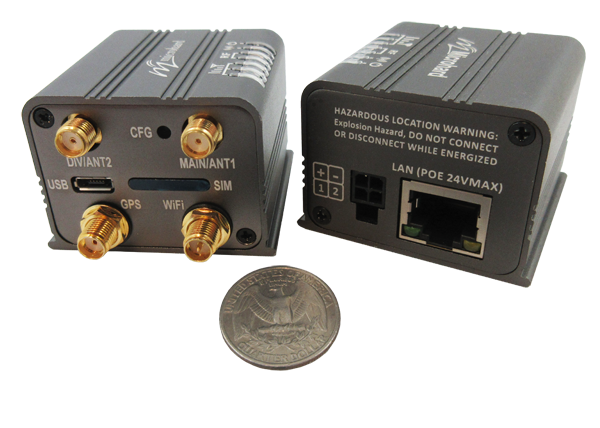

IoT 150 Mbps CAT4 LTE Ethernet Gateway with 802.11 WIFI

The LTECubeCAT4-NA2-WIFI was engineered specifically for the small size, low cost, and low power requirements of the IoT & M2M applications that are expanding across the globe. The LTECubeCAT4-NA2-WIFI provides compatibilty on most North American Cellular Networks, and fast 150 Mbps CAT4 LTE connections. The LTECubeCAT4-NA2-WIFI features 10/100 Ethernet, High Power 802.11b/g/n WIFI, Standalone GPS and flexible tunneling capabilities all while retaining low power consumption.


  • Low Cost
  • Low Power Consumption
  • Engineered for IoT Applications
  • Robust CAT4 LTE Operation
  • North America Band Support
  • Up to 150 Mbps DL / 50 Mbps UL
  • 10/100 Ethernet
  • Enterprise Class WIFI
    (more than 200 clients)
  • High Power 1W WIFI (Long Range)
  • Full IPv6 & IPv4 Support
  • MQTT Support
  • Enhanced Port Forwarding, DMZ
  • Wide Operating Temp (-40°C to +85°C)
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts (SMS/Email)
  • VPN, IPSec with IKE/ISAKMP
  • Multiple Tunnel Support
  • L2TP, Open VPN, Site-to-Site Tunneling
  • GRE Tunnel Support
  • Firewall with ACL Security
  • Configurable via SSH, HTTPS Web Interface
  • Microhard NMS Integration
  • Local/Remote firmware upgradable


  • Internet of Things (IoT)
  • Machine to Machine (M2M)
  • Remote Access
  • Electronic Billboards/Signs
  • Point of Sale Systems
  • Electric, Oil & Gas Utilities/Metering


  • FCC, IC
  • RoHS
  • Carrier Specific Approvals:



Order Information

Model P/N
LTE3-CAT4NA2-WIFI w/Kit MHK119457
