LTE3-CAT4GL

LTE3-CAT4GL - IoT 150 Mbps CAT4 LTE Cube Ethernet Gateway

The LTE3-CAT4GL was engineered specifically for the small size, low cost, and low power requirements of the IoT & M2M applications that are expanding across the globe. The LTE3-CAT4GL provides Global LTE Band Support with Fallback, and fast 150 Mbps CAT4 LTE connections. The LTE3-CAT4GL features RJ45 Ethernet, Standalone GPS and flexible tunneling capabilities all while retaining low power consumption.

Features

  • Low Cost
  • Low Power Consumption
  • Engineered for IoT Applications
  • Robust CAT4 LTE Operation
  • Global Band Support
  • Up to 150 Mbps DL / 50 Mbps UL
  • 10/100/1000 Ethernet
  • Full IPv6 & IPv4 Support
  • Programmable Analog/Digital I/O*
  • MQTT Support
  • LWM2M Support
  • Enhanced Port Forwarding, DMZ
  • Wide Operating Temp (-40°C to +85°C)
  • SMS Alerts, Control
  • Monthly/Daily Usage Alerts (SMS/Email)
  • IPSec w/IKEv1 & IKEv2 support
  • Multiple Tunnel Support
  • L2TP, Open VPN, Site-to-Site Tunneling
  • GRE Tunnel Support
  • Firewall with ACL Security
  • Configurable via SSH, HTTPS Web Interface
  • Microhard NMS Integration
  • Local/Remote firmware upgradable
  • Option -AF : 802.3af PoE

Applications

  • Internet of Things (IoT)
  • Machine to Machine (M2M)
  • Remote Access
  • Electronic Billboards/Signs
  • Point of Sale Systems
  • Electric, Oil & Gas Utilities/Metering

Approvals

  • FCC, IC
  • PTCRB
  • CE
  • EN301908-1, EN301908-2,
    EN301908-13, EN303413,
    EN301489-1, EN301489-52,
    EN62311, EN55032,
    EN55035, EN62368
  • RCM: Australia & New Zealand

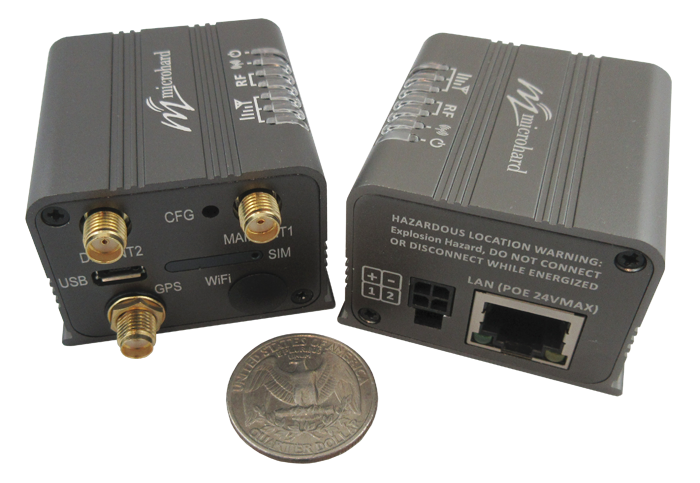

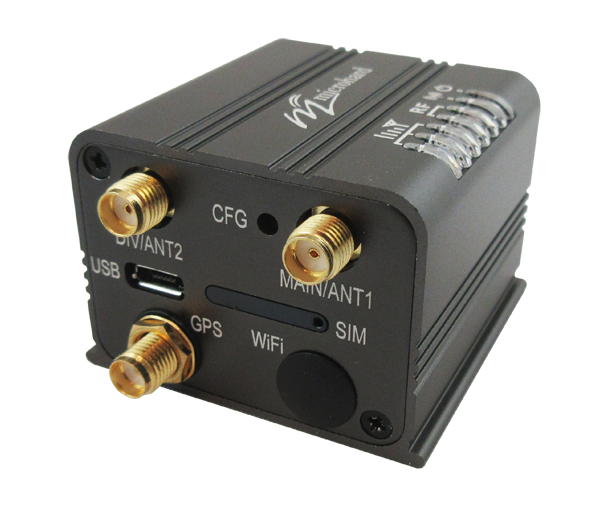

LTECube-CAT4GL Images



Order Information

Model PN
LTECube-CAT4GL CA-MHK119420
LTECube-CAT4GL w/Kit MHK119422
